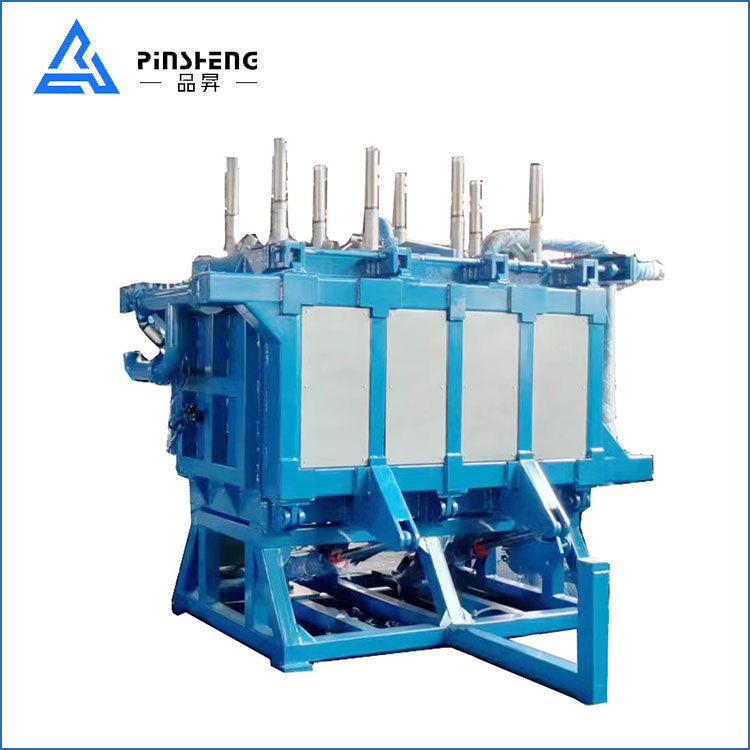

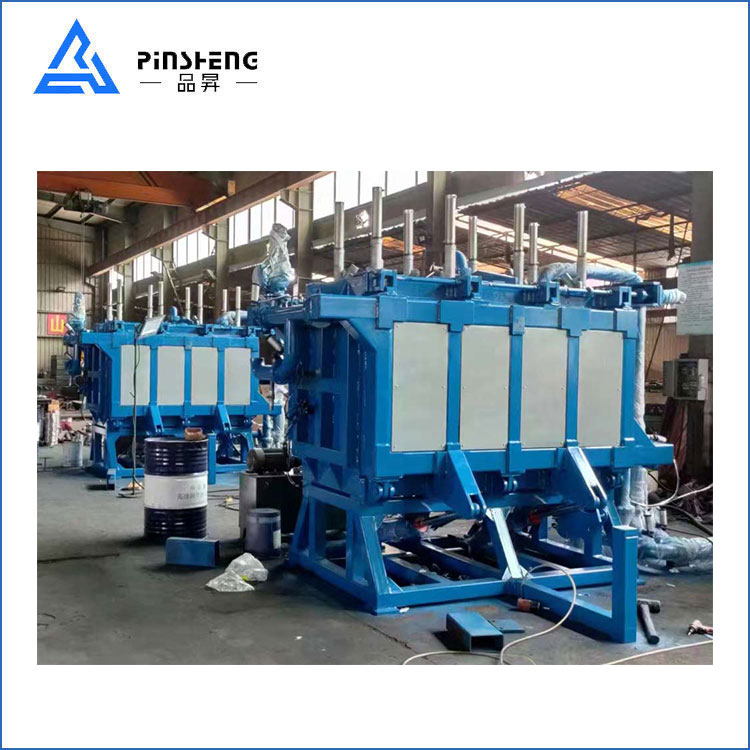

1.2m EPS Machine Polystyrene Sheet Plc Control Block Moulding

As a professional high quality Pinsheng® 1.2m EPS Machine Polystyrene Sheet Plc Control Block Moulding manufacture, you can rest assured to buy 1.2m EPS Machine Polystyrene Sheet Plc Control Block Moulding from our factory and we will offer you the best after-sale service and timely delivery.

Send Inquiry PDF DownLoad

Product Description

You can rest assured to buy Pinsheng® 1.2m EPS Machine Polystyrene Sheet Plc Control Block Moulding from our factory and we will offer you the best after-sale service and timely delivery.

1.2m EPS Machine Polystyrene Sheet Plc Control Block Moulding

Specifications:
Model:PSBM200B
Brand: PinSheng

Voltage:AC380V 50Hz
Power: 20kw
Warranty period :1 year
Room Height Required :5m
Weight :5000kg
Color:Customization

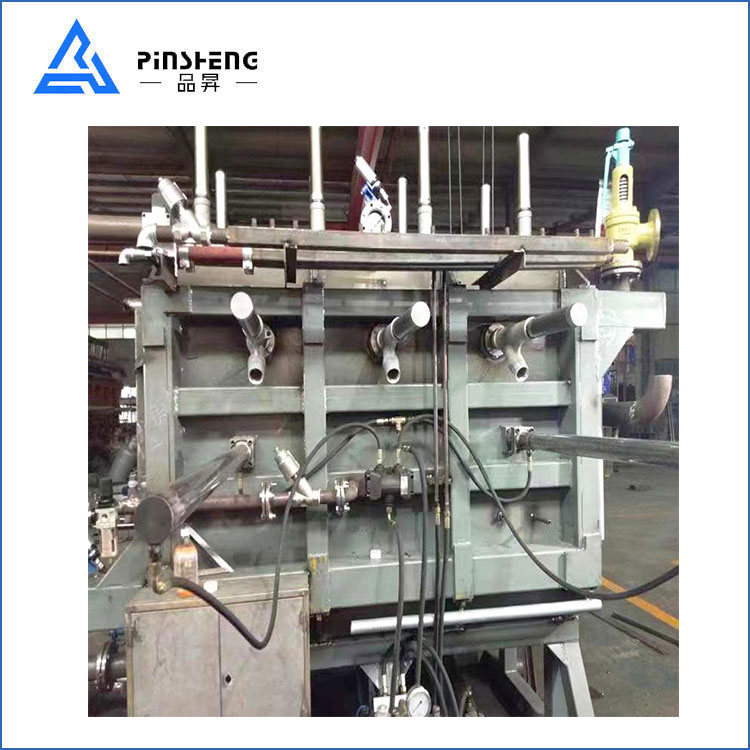

Mechanical Structure:
Control System
PLC and human-touch Control, automatic operation, convenient maintenance.

Structure Design
High quality square tube and steel plate are used for the machine's structure in perfect Hydraulic station control the signal door, model's stripping,and locking device.Spare parts and fittings are high quality products of well-known brand which keep the machine in along service life.

Item	Unit	PSBM200B
Mould Cavity size	mm	2040X1240X1030
Block Size	12g/L	2000X1200X1000
Steam Inlet	mm	DN50
Steam Consumption	kg/cycle	25-45
Steam Pressure	Mpa	0.8
Compressed Air Inlet	mm	DN40
Compressed Air Consumption	m³/cycle	0.2-0.4
Compressed Air Pressure	Mpa	0.6
Cooling Water Inlet	mm	DN40
Cooling Water Consumption	m³/cycle	0.4
Cooling Water Pressure	Mpa	0.2-0.4
Drainage Vacuum Drain	mm	∅100
Drainage Condensate	mm	∅100
Drainage Blower Outlet	mm	∅100
Throughput	15kg/m³	4min
Connected Load	kw	20
Outside Dimension	mm	5700X4000X2800
Weight	kg	5000
Room Height Required	mm	6000
