Eps Horizontal Block Moulding Machine
  • Eps Horizontal Block Moulding MachineEps Horizontal Block Moulding Machine

Eps Horizontal Block Moulding Machine

Ningbo PinSheng Machinery Manufacturer (“PINGSHENG”in short) was established in 2010. With professional R&D team, PINSHENG Machinery has become one of largest and outstanding manufacturer of EPS Horizontal Block Moulding Machine, EPS Mould , EPP machine , ETPU machine and other related machines. Our company passed and had been approved for the CE certificate, ISO 9001:2008 Quality Management System Certificate and have more than 50 patents. If you are interested in EPS Horizontal Block Moulding Machine, we will be your best Choice!

Send Inquiry

Product Description

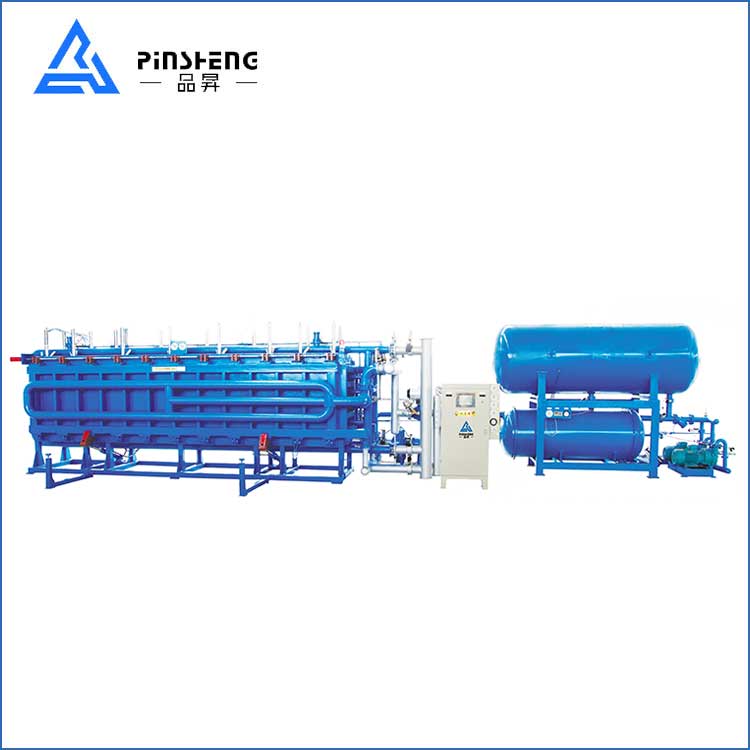

EPS Horizontal Block Moulding Machine

All we do is usually connected with our tenet " Client very first, Belief first, devoting about the food stuff packaging and environmental security for Top Grade Cheap Price Eps Horizontal Block Moulding Machine, As we're moving forward, we maintain an eye on our ever-expanding item range and make improvement to our expert services.
Top Grade Cheap Price Eps Horizontal Block Moulding Machine, We strongly believe that technology and service is our base today and quality will create our reliable walls of future. Only we've better and better quality , could we achieve our customers and ourselves, too. Welcome customers all over the word to contact us for getting further business and reliable relationships. We have been always here working for your demands whenever you want.

1.Product Introduction

Our PSBM200-800VC/AC EPS Horizontal Block Moulding Machine is a full automatic equipment to produce EPS block, which is efficient and has low energy consumption.



Model: PSBM200-800VC/AC

Brand: PINSHENG

2.Product Parameter (Specification)

Our EPS Horizontal Block Moulding Machine provides all machine process,including filling,expanding,sieving, de-lumping and conveying work automatically.

1.Flexible customized size

The size of  EPS Horizontal Block Moulding Machine can be adjustable . Both in length or width of machine by rotation code to control screw cylinder.By setting the block mold size using the touch screen,the machine will adjust the mould size automatically.The usage method is simple.

2.Machine structure

The mold of EPS Horizontal Block Moulding Machine is welded by strong rectangle tube and steel plate which make high strength to keep more safety of the machine.

All block mold frames have heat-treatment to release welding stress,so that the frames would not deformed.

After heating treatment,all mold frames are processed by sand blasting treatment to keep the rust away,then under coat and finishing coat are greatly improved anticorrosion performance and long life;

Adopts three Germany gauges and safety valve for multi-safety protection.The machine will be tested by water pressure and steam(many steps),ensure the machine more safety and stable.

3.Steam system

The EPS Horizontal Block Moulding Machine has 3 ball valves ,comparing one big steam valve control system, it can save at least 20% steam,with ISO-standrad butterfly valves ,greatly improve stability and long life.

4.Control system

The EPS Horizontal Block Moulding Machine adopts PLC(Mitsubishi) and touch screen(Schneider) for an easy operation;

Equipped material level sensor to control the filling.The block cooling is controlled by foam pressure sensor.The whole procedure for filling,heating,cooling will be controlled automatically by PLC.



3.Product Feature And Application

EPS(EXPANDABLE POLYSTYRENE) is commonly used for insulation panels for building.With the good quality,it can be expand 40~60 times the volume of the original polystyrene beads.

Eps Horizontal Block Moulding MachineEps Horizontal Block Moulding Machine


4.Deliver,Shipping And Serving

Eps Horizontal Block Moulding Machine


5.FAQ

1.Where is your factory located?
We have 2 production plant, one plant locates in Hangzhou which professionally producing EPS/EPP/ETPU machine. Another factory locates in Jiangsu Provide which producing EPS/EPP/ETPU mould. Both two factories are pretty close to the Shanghai port for easiest transportation.

2.Do you have detailed and professional installation manual?
We will provide very detailed installation manuals and videos, and the service until you are satisfied

3.Are you a trading company or a manufacturer?
We are manufacturer.

4.Q:How long is your delivery time?
Normally delivery time is 30~45 days.

5.Q:How many years have your company made this kind of equipment?
More than 10 years.

6.Q:Can I only buy some spare parts from you?
Yes, we also provide all kinds of spare parts that relatives to our machine.

7.How do you pack the equipment?
We will strengthen and protect the equipment to ensure that they will not be damaged during transportation.

8.Q:Can you send your staff to install the equipment for us?
Under normal conditions, it is possible. Now it is an epidemic situation. We will try our best to assist in case wecannot send technician in time. We will also conduct video connections with guests to teach them to install them in place.

9.Q:Can you can design the equipment according to our size?
Yes, it is acceptable

10.Q:How many production lines in your factory?
We have total 10 production line.
