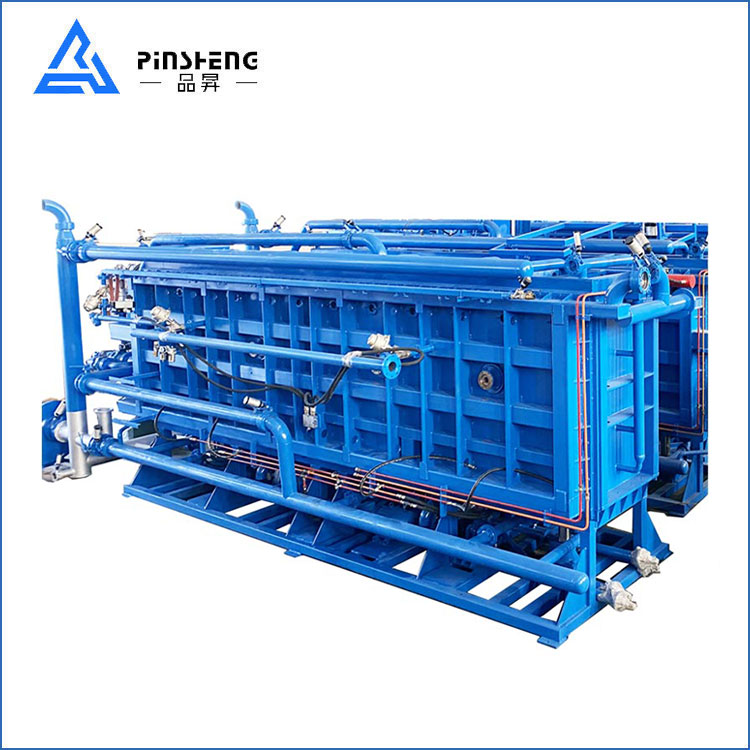

Pinsheng EPS Block Moulding Machine
  • Pinsheng EPS Block Moulding MachinePinsheng EPS Block Moulding Machine
  • Pinsheng EPS Block Moulding MachinePinsheng EPS Block Moulding Machine

Pinsheng EPS Block Moulding Machine

Ningbo PinSheng Machinery Manufacturer as one ofprofessional EPS MACHINE in China,we make the high quality EPS BLOCK MOULDING MACHINE, You can rest assured to buy customized Pinsheng EPS Block Moulding Machine from us. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!

Send Inquiry

Product Description

Pinsheng EPS Block Moulding Machine

Find a huge selection of Pinsheng EPS Block Moulding Machine from China at Ningbo Pinsheng Machinery Co.,ltd Provide professional after-sales service and the right price, looking forward to cooperation.

EPS Block Moulding Machine Introduction

Model:PSBM200-800VC/AC

Brand: PinSheng


Mechanical Structure :
a. the machine mold is welded onto strong rectangular tubes and steel plates which ensure high srength for the additonal safety of the machine..
b. after heat treatment all mold frames are processed through sand-blasting ,greatly improve corrosion performance and service life of the equipment
c. Adopts three German gauge and safety valve for multi-safety protection.


Steam System :
Three ball valves ,compared to one big steam valve control system saves 20%steam ,with ISO-standard butterfly valves,which greatly improves stability and increases machine life.


Control System:
a.adopts PLC(Mitsubishi) and HMI(WEINVIEW) making operation easy.
b.stroke is adjusted by the encoder controlled through the HMI settings ,easy adjustment and high accuracy .


Item

Unit

PSBM200VC

PSBM300VC

PSBM400VC

PSBM600VC

PSBM800VC

Mould Cavity size

mm

2040X1240X630

3060X1240X630

4080X1240X630

6100X1240X630

8120X1240X630

Block Size

12g/L

2000X1200X600

3000X1200X600

4000X1200X600

6000X1200X600

8000X1200X600

Steam Inlet

mm

DN100

DN100

DN150

DN150

DN200

Steam Consumption

kg/cycle

20-30

30-40

45-55

60-70

80-100

Steam Pressure

Mpa

0.8

0.8

0.8

0.8

0.8

Compressed Air Inlet

mm

DN50

DN50

DN50

DN50

DN50

Compressed Air
Consumption

m³/cycle

1-1.5

1.5-1.8

1.8-2

2-2.3

2.2-2.5

Compressed Air
Pressure

Mpa

0.6

0.6

0.6

0.6

0.6

Drainage Steam vent

mm

∅125

∅150

∅200

∅200

∅250

Drainage Blower Outlet

mm

∅125

∅125

∅150

∅150

∅200

Throughput

15kg/m³

5-12min

6-15min

7-18min

8-18min

10-18min

Connected Load

kw

9.5

11

13

13

16.5

Outside Dimension

mm

4000X2200X2900

5030X2270X2900

6600X2550X2900

8500X2700X2900

11300X2800X3100

Weight

kg

4200

6000

8500

9500

13800
