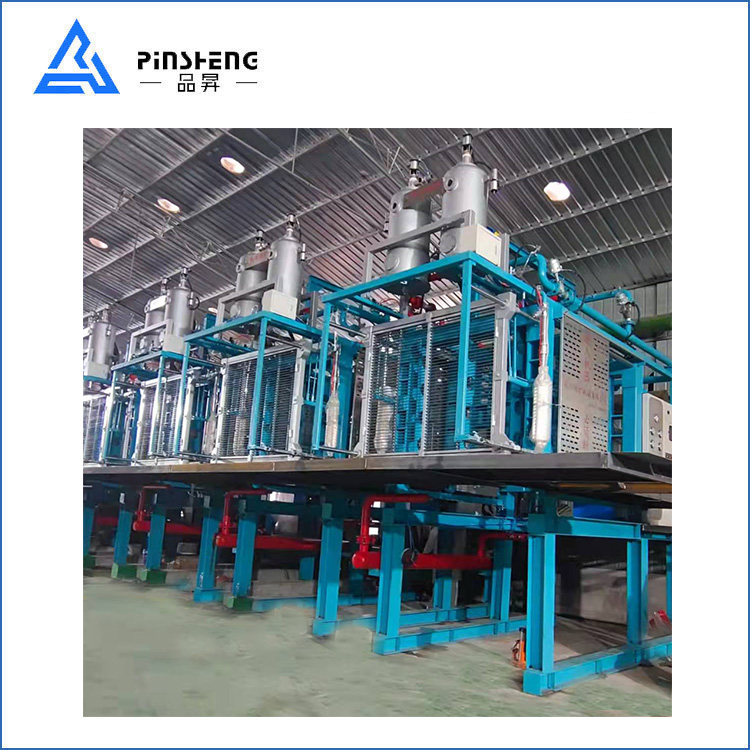

Pinsheng EPS Shape Molding Machine
  • Pinsheng EPS Shape Molding MachinePinsheng EPS Shape Molding Machine
  • Pinsheng EPS Shape Molding MachinePinsheng EPS Shape Molding Machine
  • Pinsheng EPS Shape Molding MachinePinsheng EPS Shape Molding Machine

Pinsheng EPS Shape Molding Machine

Ningbo PinSheng Machinery Manufacturer as one ofprofessional EPS MACHINE in China,we make the Pinsheng EPS Shape Molding Machine.You are welcomed to come to our factory to buy the latest selling, low price, and high-quality Pinsheng EPS Shape Molding Machine. We look forward to cooperating with you.

Send Inquiry

Product Description

Pinsheng EPS Shape Molding Machine

Ningbo Pinsheng Machinery Co.,ltd. is a professional leader China Pinsheng EPS Shape Molding Machine manufacturer with high quality and reasonable price. Welcome to contact us.

Product Introduction

Model:PSSM100-200B

Brand: PinSheng


Mechanical Structure:

Weld together with high-intensity square tube and avoid deformation of the template by tempering.

Increase the anticorrosion performance and useful life of the equipment largely after derusting by sandblast.

Spray zinc-rich primer for antirust to increase the antirust performance and useful life of the equipment largely after sand blasting.


Electric Control:

Controlled by PLC(Mitsubishi) with full-automatic operation in clamping,feeding,heating,cooling and stripping on HMI(WEINVIEW)

All the electrical components are adopted with well-known brands at home and abroad with more excellent equipment stability.

Stroke adjustment is controlled by encoder ,which is convenient ,which is convenient to adjust with high precision by setting on HMI


Item

Unit

PSSM100B

PSSM120B

PSSM140B

PSSM160B

PSSM170B

PSSM180B

PSSM200B

Mould Dimension

mm

1000X800

1200X1000

1400X1200

1600X1400

1700X1500

1800X1600

2000X1800

Max Product Dimension

mm

850X650X350

1050X850X350

1250X1050X350

1450X1350X350

1550X1350X350

1650X1450X350

1850X1650X350

Stroke

mm

110-1360

110-1360

170-1420

170-1420

170-1420

120-1370

40-1290

Steam Inlet

mm

DN65

DN80

DN100

DN100

DN100

DN100

DN100

Steam Consumption

t/t

(10-15t)Steam of 1t Material

Cooling Water inlet

mm

DN65

DN80

DN80

DN80

DN80

DN80

DN100

Cooling Water
Consumption

kg/cycle

40-110

45-130

55-150

60-180

70-190

90-200

100-220

Compressed Air Inlet

mm

DN40

DN40

DN40

DN40

DN50

DN50

DN50

Compressed Air
Consumption

m³/cycle

1.2

1.5

1.8

2

2.2

2.4

2.6

Vacuum Pump
Capacity

m³/h

165

165

230

230

280

280

280

Drainage Port

mm

DN125

DN125

DN150

DN150

DN150

DN150

DN150

Connected Load

kw

11

11

13

17

17

17

20

Outside Dimension

mm

4300X1900X3400

4600X2100X3600

4600X2300X3800

4600X2500X4000

4600X2600X4100

4600X2700X4200

4600X2900X4400

Weight

kg

4000

4500

5000

6000

6500

7000

7500

Cycle Time

s

60-90

60-100

60-120

70-160

80-170

80-180

90-180
